Description

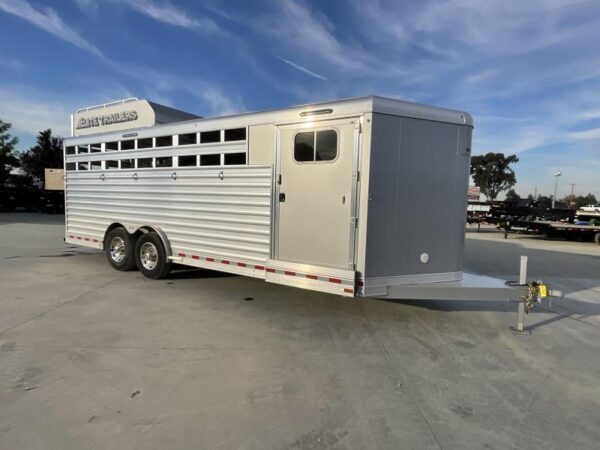

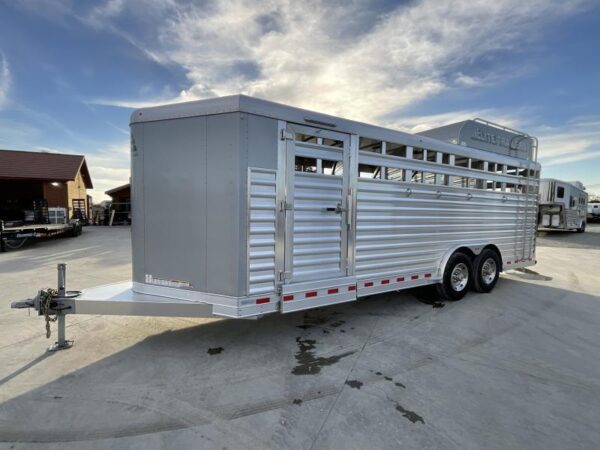

NEW 2024 Elite Trailers 5BPSC 22′ 5 Horse Stock Combo Bumper Pull Horse Trailer!

This 2024 Elite 22′ 5 Horse Bumper Pull is 8′ wide, 7′ tall and includes 8′ hayrack with ladder, 8k axles, adjustable coupler and so much more!

Stock Combo Horse Trailers are engineered to deliver rugged good looks and the durability to stand up to a wide range of hauling. With a heavy duty, engineered structure the Stock Combo Horse Trailer works hard with you, not against you.

Empty weight: 6,410 LBS
GVW: 18,563 LBS

Upgraded Features:

Width: 8′ wide
Footage: 40″ stalls, 86″ rear stall
Coupler: 12″ coupler extension with reinforced frame
Coupler: adjustable 2 5/16″ 25,000 coupler
Battery: single battery box wired up with battery
Axle: two-8k axles

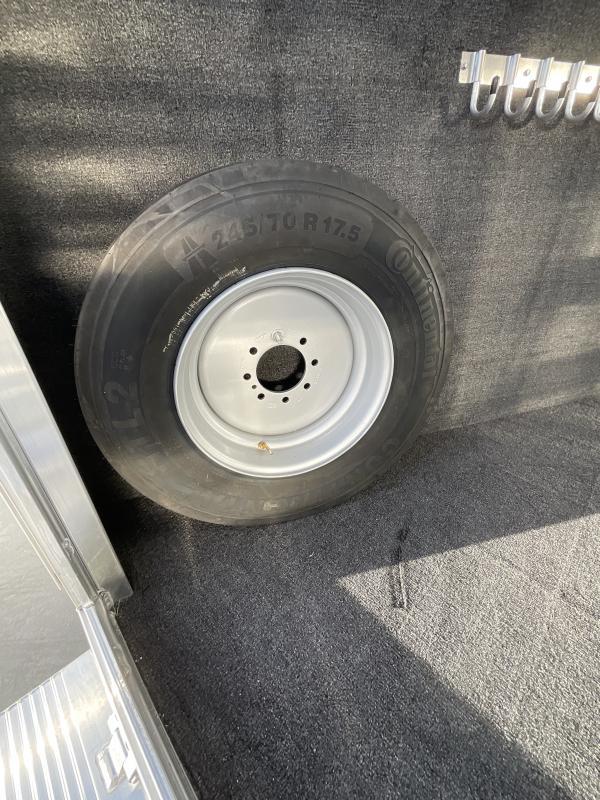

Tire: (5) Continental HTL2 245/70R17.5 load range “J”
Wheel: simulators 17.5 wheels
Exterior skin: gray skin

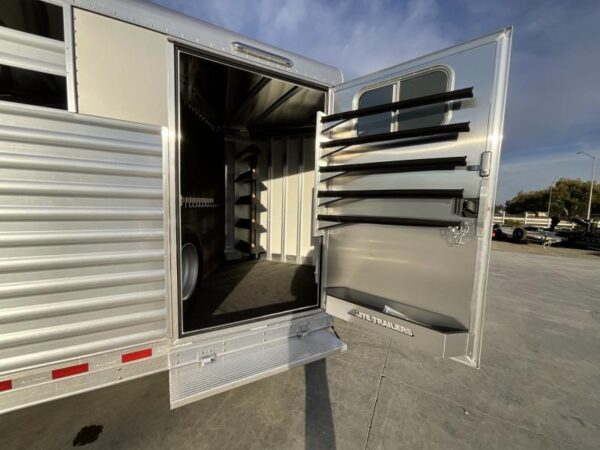

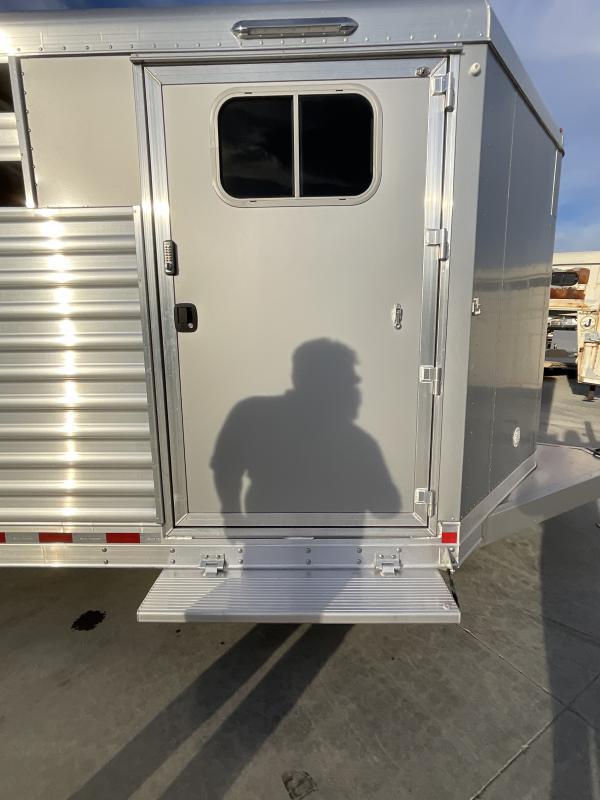

Door: Extended 42″ door in dress/tack area
1st stall divider – full to bottom

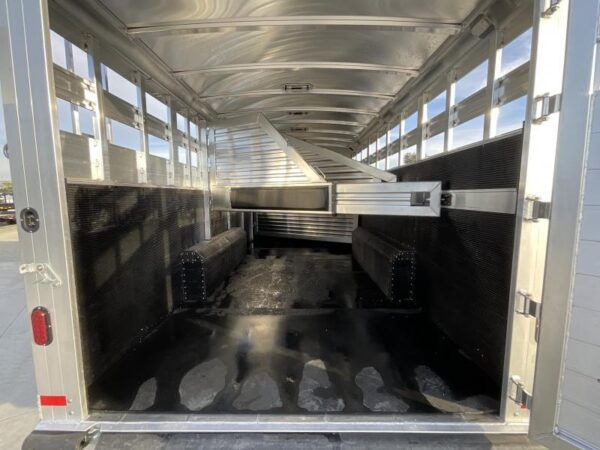

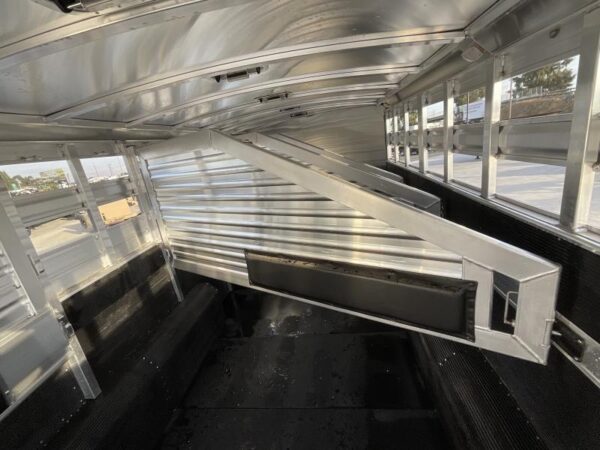

Divider: Telescoping divider with padding in last stall
3/4″ button LED running lights, 3/4″ button LED running lights, LED “awning style” load light, LED extra high turn signals
Ties: trailer ties in inside and outside of trailer- 10 outside, 5 on each side- 10 inside- 2 per stall

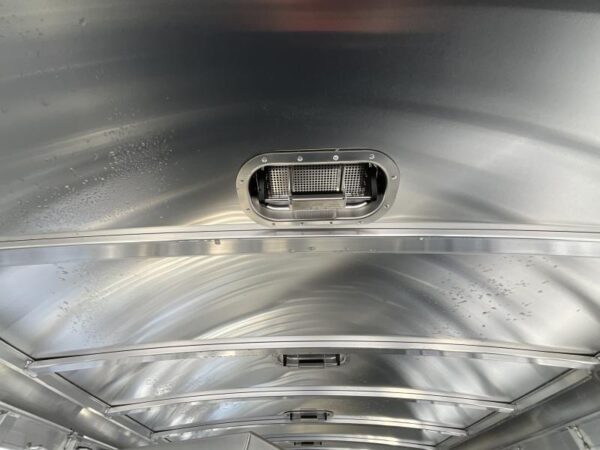

Vent: two way roof vent in horse area

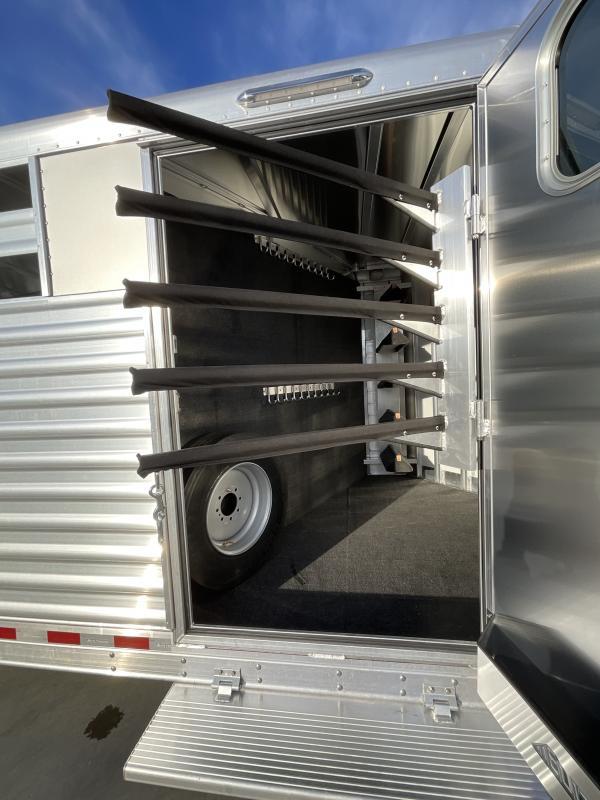

Bars: 1- 5 tier swing out blanket bar

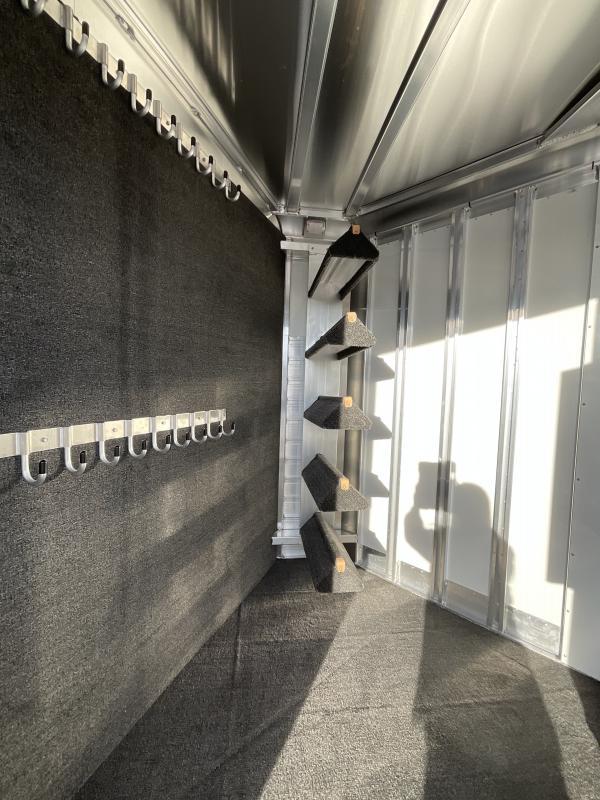

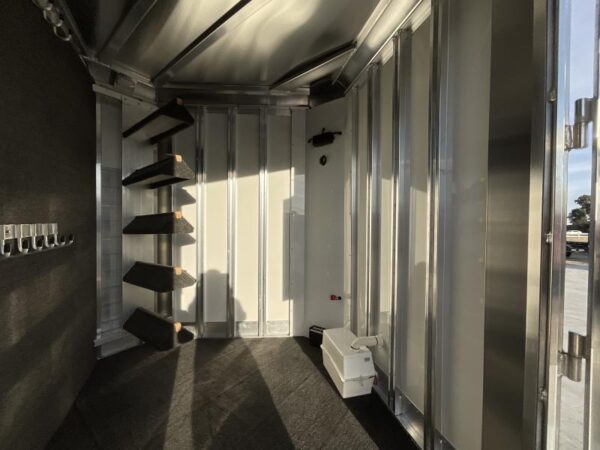

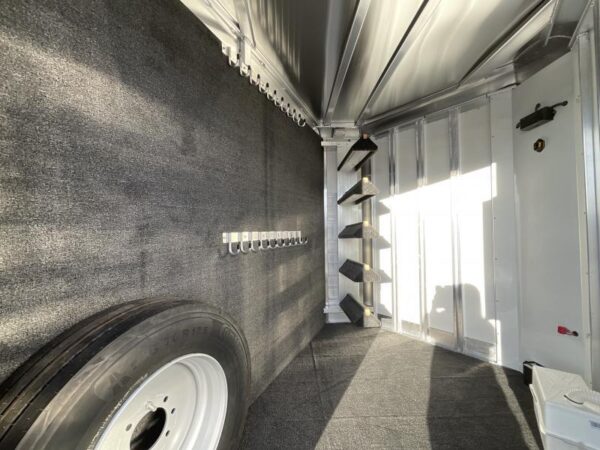

Saddle rack: 1- 5 tier saddle rack

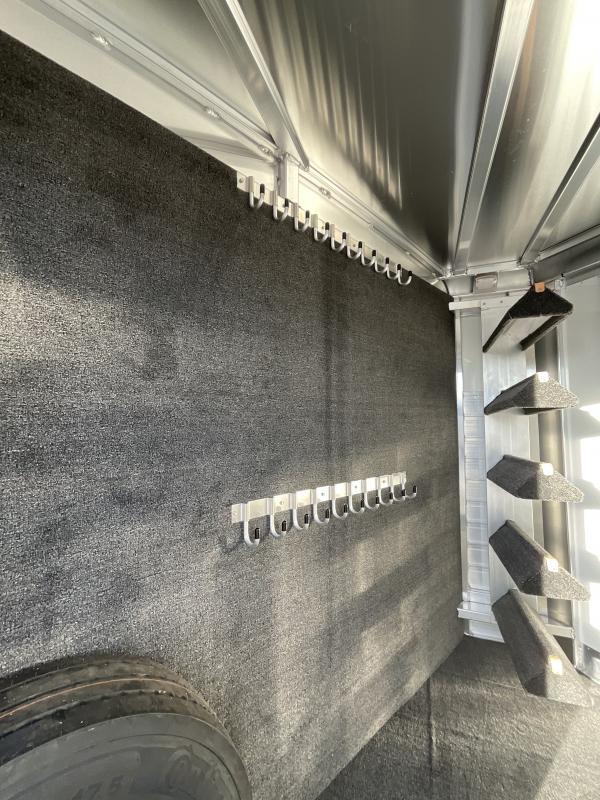

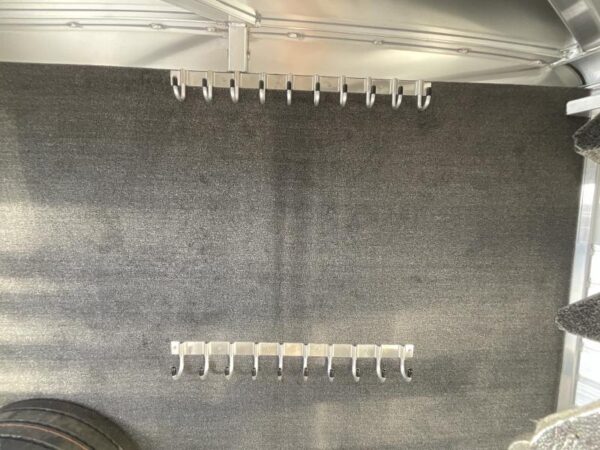

Hooks: 20 bridal hooks in tack/dressing area
Trays: 1-brush tray on tack/dressing door

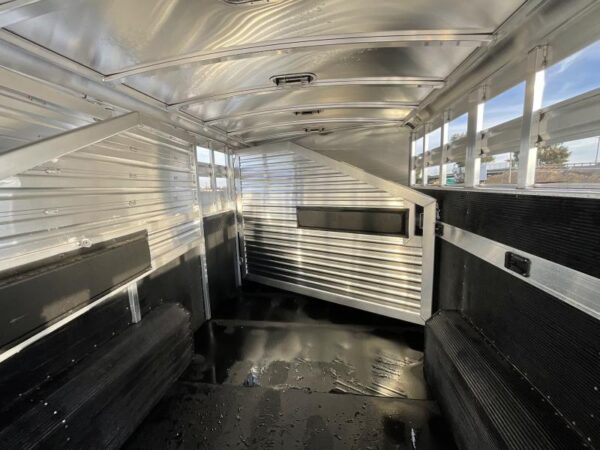

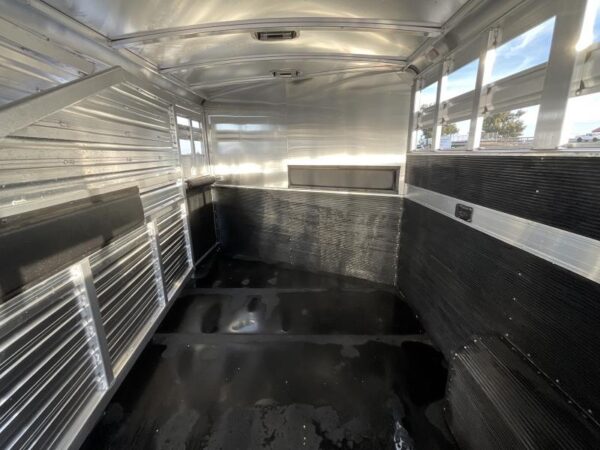

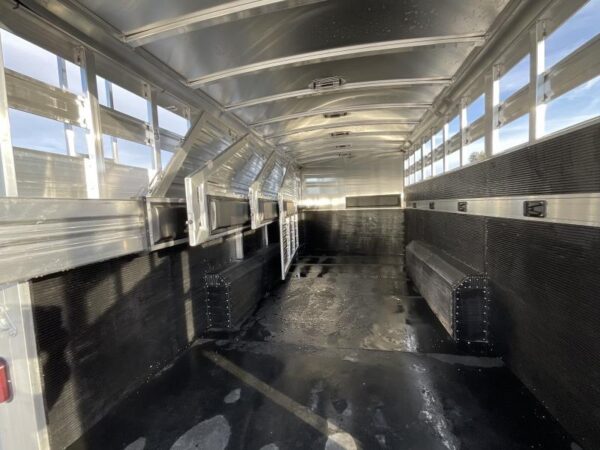

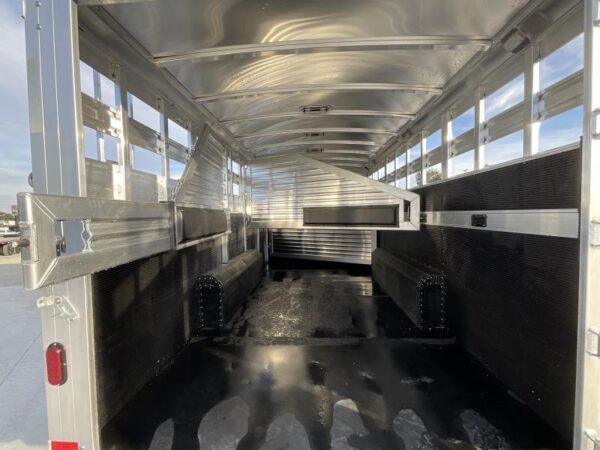

All walls in stall area – Rubber, double walled & insulated
Carpet on Bulkhead wall
Step: fold up step at tack/dressing area and escape gate
Track: track only for plexi-glass in stall area
Lock: combination lock on tack/dressing area door

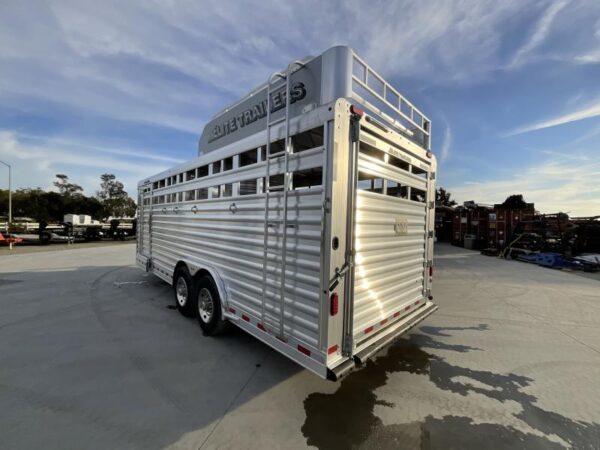

Hayrack: 8′ aerodyne hayrack with ladder and tie rail

Standard Features:

Exterior-

• 2-5/16″ Adjustable Coupler with Safety Chains and Breakaway Kit- UPGRADED
• 8,000 Pound 2″ Square Drop Leg Jack
• .040 One Piece Aluminum Roof Sheet
• Full Length Side Slats with Two Air Spaces and Smooth Sheets
• Rubber Torsion Axles with Electric Brakes
• Radial Tires with Steel Wheels- UPGRADED
• Stainless Steel Hub Caps

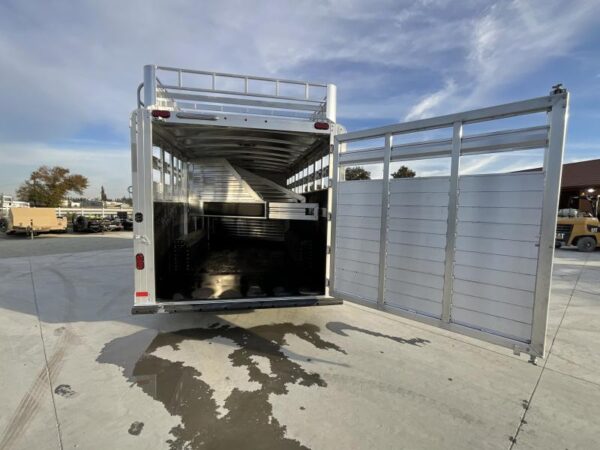

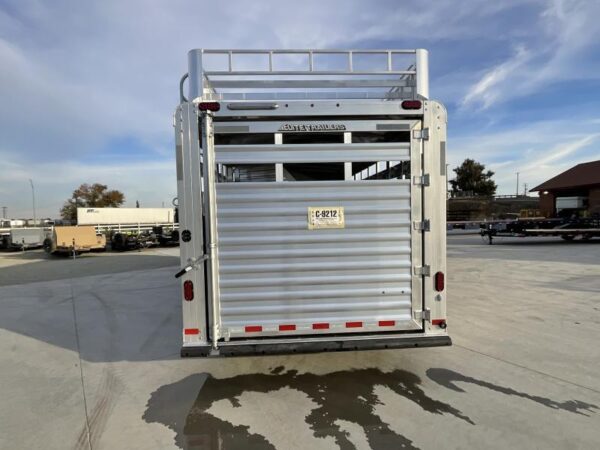

• Full Width Rear Gates with Pipe Hardware
• 4″ Rubber Docking Bumper

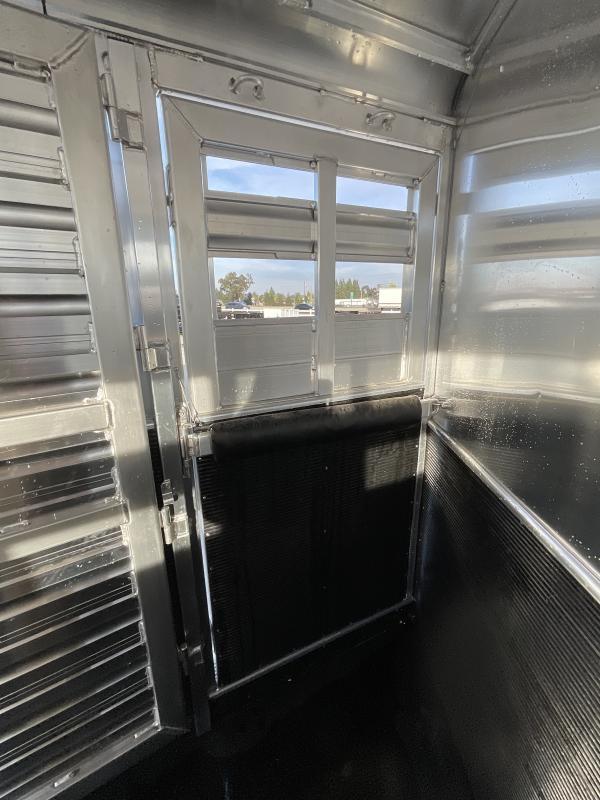

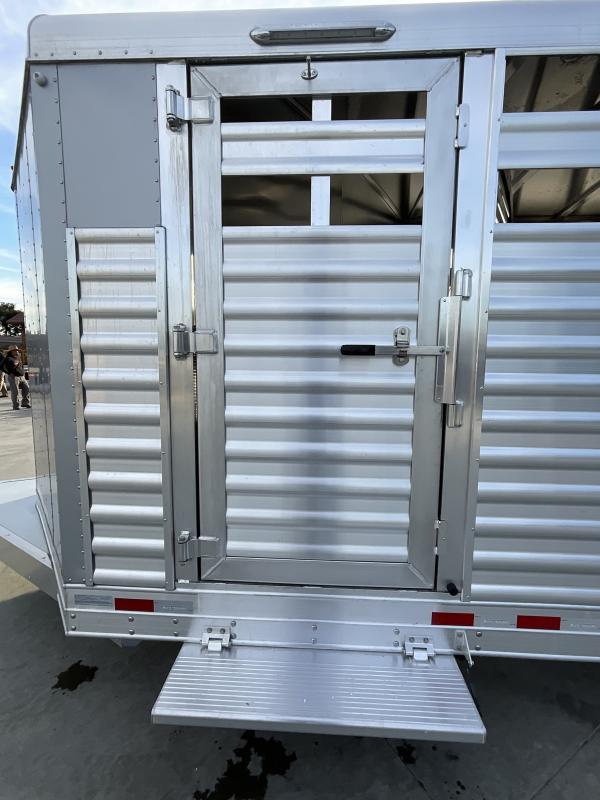

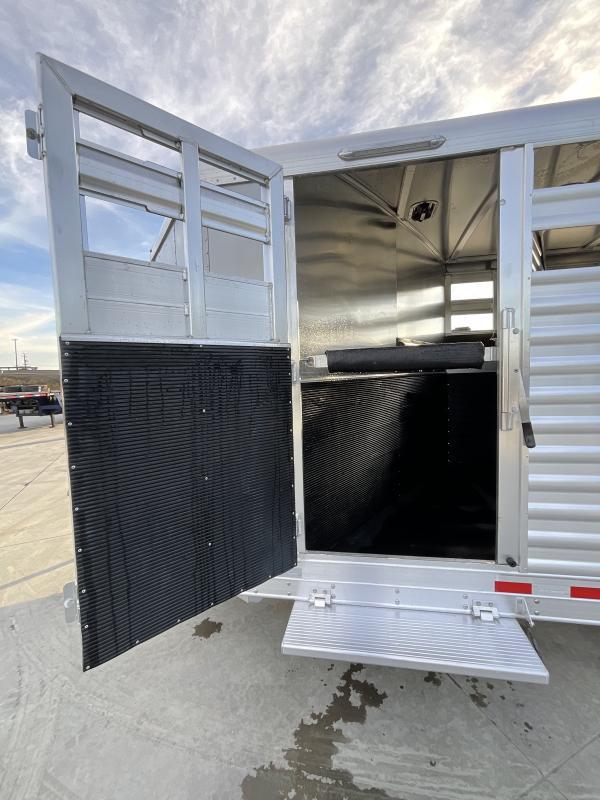

• Escape Gate on Streetside at 1st Horse with Breast Bar
• One Exterior Tie per Stall-UPGRADED
• .125 Smooth Aluminum Floor (5052 Marine Grade)
• LED Dome and Clearance Lights- UPGRADED
• 7 Way Plug and Wiring
• Recessed Exterior Light Switches
• LED Turn Signals at Rear

Stock Area-

• Two Interior Ties per Stall
• Rubber on Bulkhead Wall (Stock Side)
• Premium Rubber Mats on Floor in Horse Area

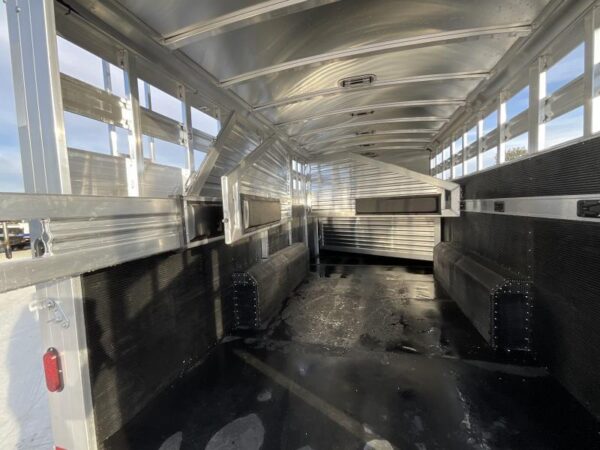

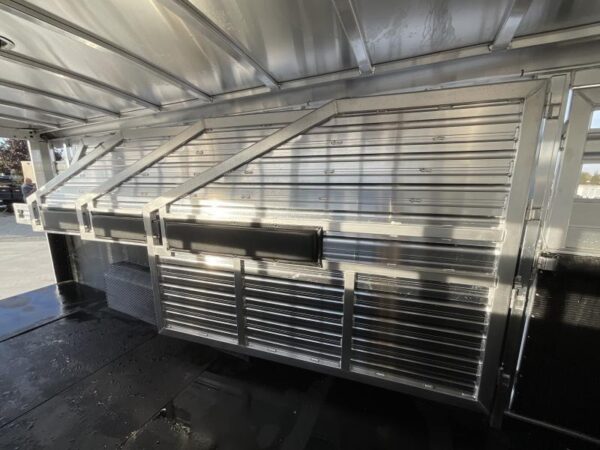

• Slatted Dividers with Stall Pads

Dress-

• Dressing Room Door with Hehr Window and Camper Latch- UPGRADED
• Premium Rubber Mats on Floor in Dress
• 10 Bridle Hooks- UPGRADED
• One Saddle Rack per Horse-UPGRADED

Trailer Details

Components-

• Doors: All Elite built doors are engineered with heavy duty, proprietary extrusions and constructed to allow for maximum seal.
• Lighting: Elite utilizes LED interior and exterior clearance lighting in all wiring harnesses. All wiring connections are plugs or are soldered, covered with heat shrink material.
• Bulkhead Wall.090″ smooth sheet welded on to our heavy duty wall posts.
• Lining and Insulation: With 4 tiers of protection, Elite Horse Trailers provide the protection from horses kicking and pawing, and help prevent sidewall damage and exterior dings.
• Axles and Tires: Elite uses Dexter Rubber Torsion axles with electric brakes and name brand tires. Our trailers are engineered with accurate weights that provide proper axle and tire size based on the total weight of the trailer and it’s contents, including living quarters.
• Hinges: Elite’s proprietary, heavy duty, extruded hinge is used for doors and dividers. This hinge is fitted with a brass fitting that lubricates and allows for a tighter fit with the stainless pin. This hinge is welded to the structure to give us the strongest hinge possible.
• Windows: Elite only uses HEHR windows. Available in many sizes and types, you can rest assured that they will be installed, worry free.
• Saddle Racks: The Elite built carpeted saddle racks are designed to hold a large variety of today’s saddles.

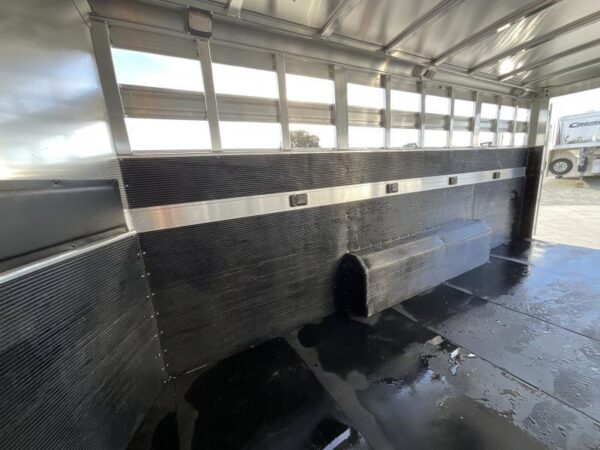

• Wall Rubber: The wall rubber on our trailers is corded rubber matting that is able to absorb impacts that would damage lesser made products.
• Carpet: Marine grade carpeting is used in the tack room and other applications to assure a long life.

Structure-

• Top Rail: Continuous 5″ radius rail with an overall height of 8″ and a material thickness of 3/16″ with an integrated drip rail.
• Flooring: Elite’s floor structure consists of 4″ I beams with an upper 2 1’2″ flange and a lower 3″ flange on 12″ centers. Elite utilizes a .125″ thick, 5052 marine grade sheet floor on top of the structure.
• Rear Frame: The rear frame is supported by a 2 1/2″ x 5″ upper header at a 1/4″ thickness. For added strength, the rear frame side post is integrated through the floor into the bottom rail.
• Aluminum Side Wall Construction: 6005 T6 aluminum alloy posts with 7″ posts at the drop wall, 5″ x 1 3/8″ at doors and dividers, and 1 3/8″ x 2 1/2″ for all other side wall structure posts. The exterior, 6063 aluminum interlocking extruded slat is .125 thick. Exterior smooth sheets are a 3004 aluminum alloy with a H291 temper and thickness of up to .063″.
• Roof Construction: 1″ x 2 1/2″ arched roof bows with one piece, .040″ thick 3003 H16 aluminum roof sheet.
