Description

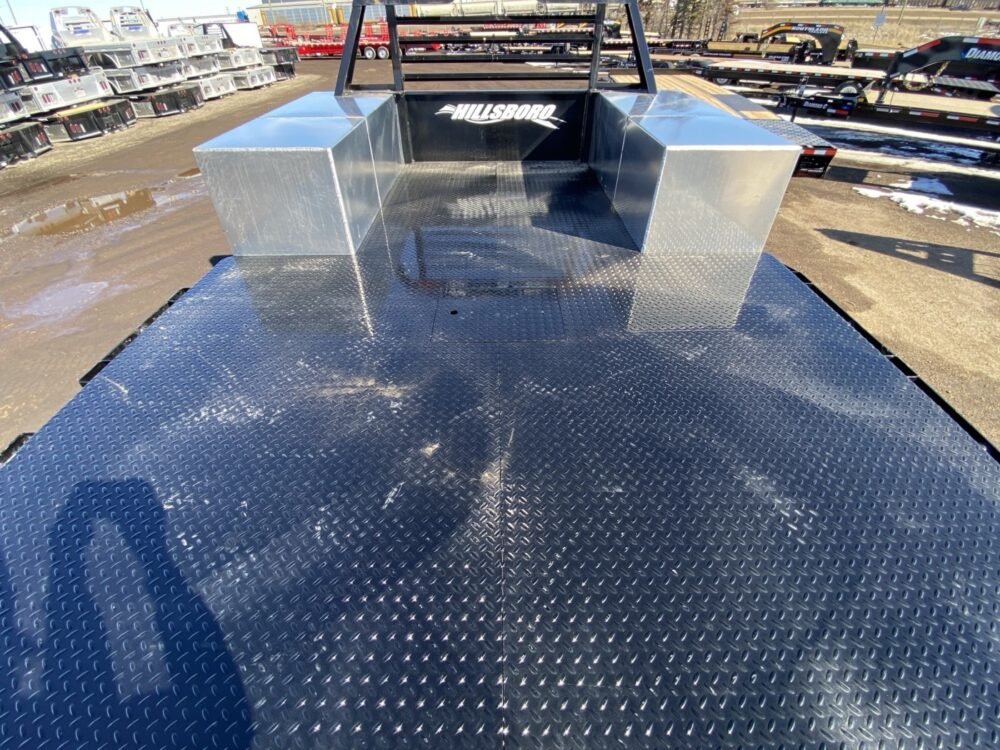

Hillsboro Hybrid Truck Bed STA500
- Series: 500
- Model: 78346
- Size: 96″(W) x 136″(L)
- Steel Body w/ Corrosion Resistant 0.125 Aluminum Skirt
- Frame Width: 34″
- Cab-Axle: 84″
- Headache Rack: 40″ w/ 1¼” Square Tube Louvers
- 5″ Structural Channel Long Sills
- 2½” Cross-members

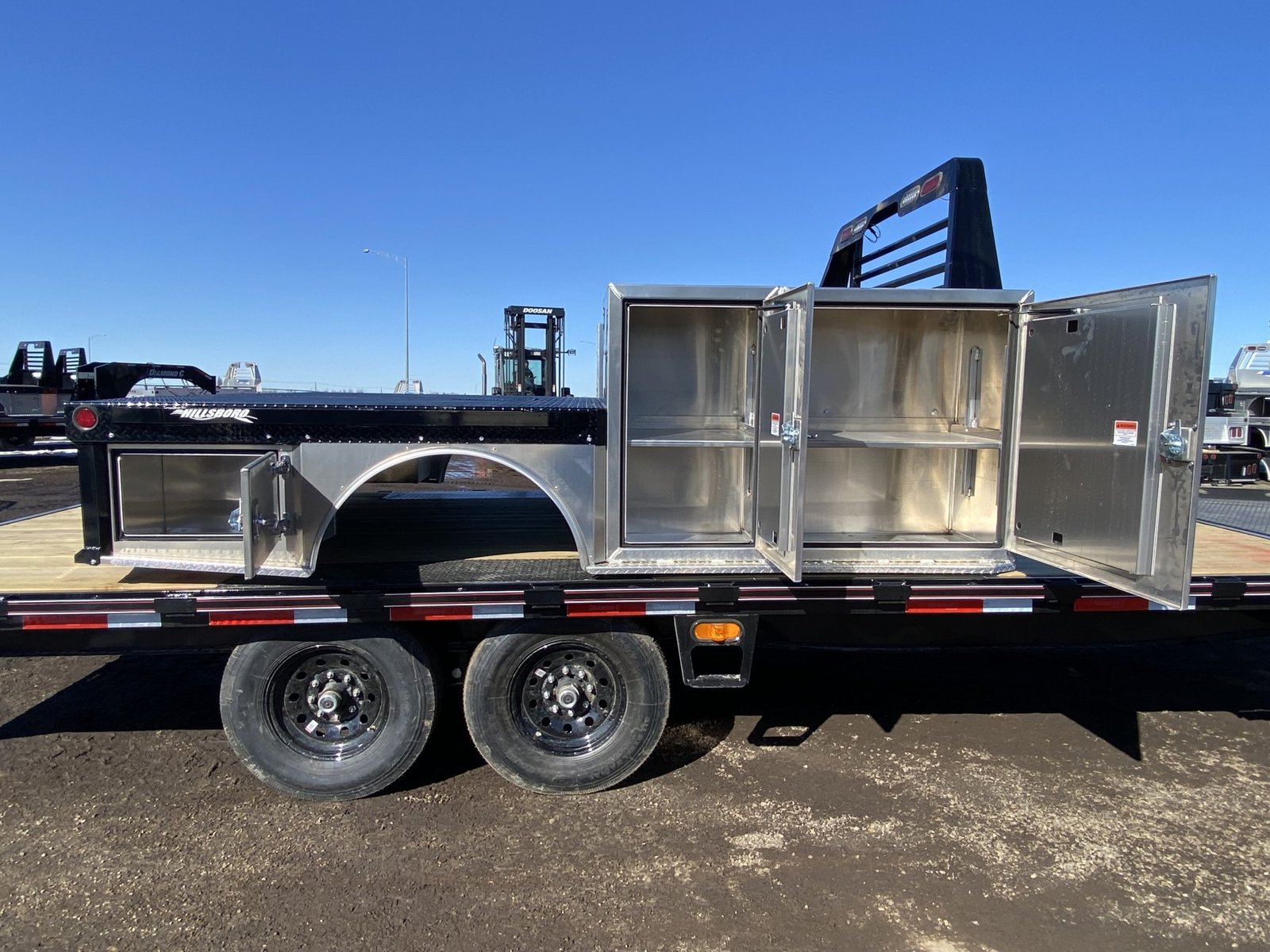

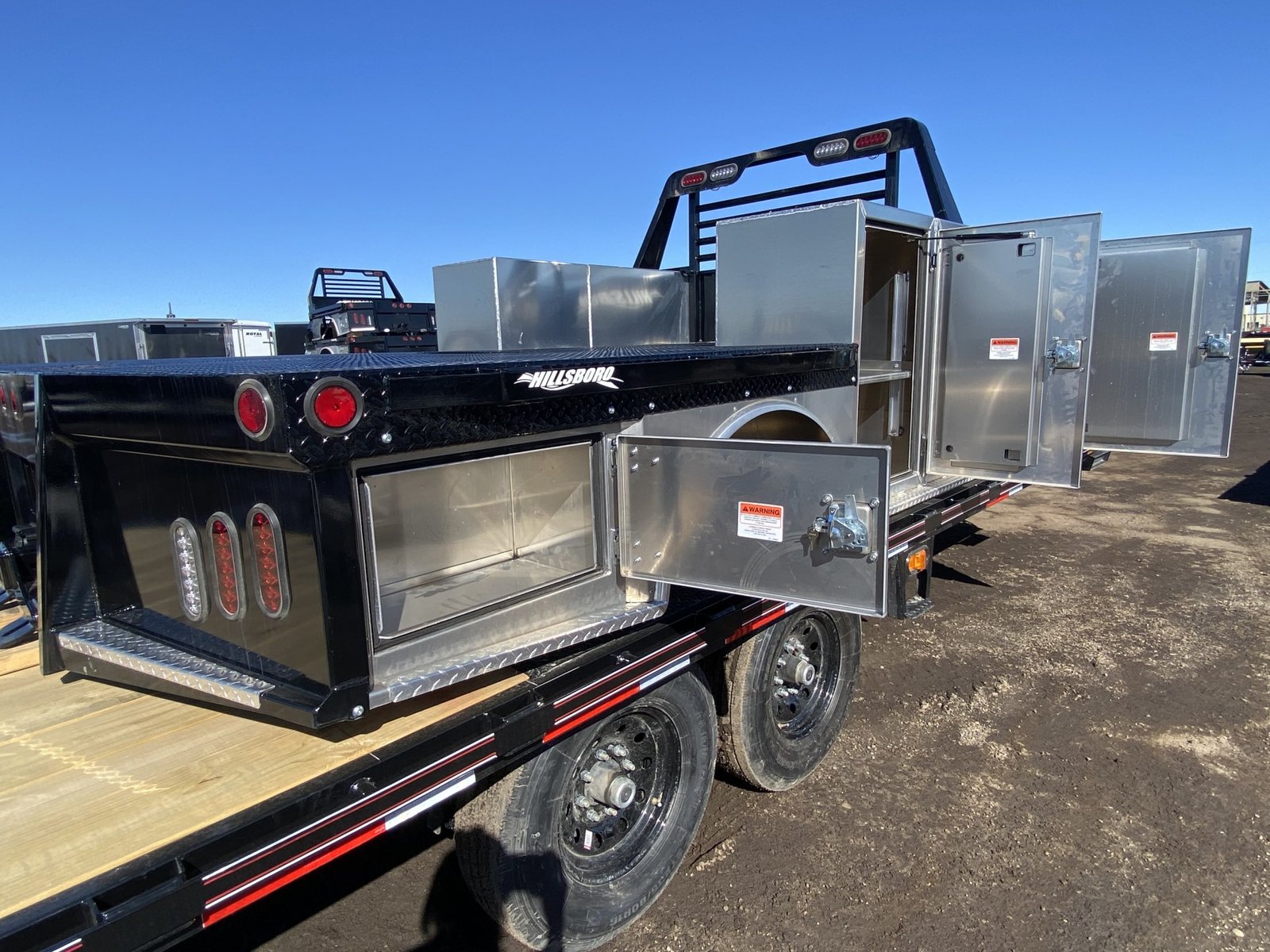

- Toolboxes: (6) Weatherproof EPDM Closed-cell Foam Seal
- Front Board Holders

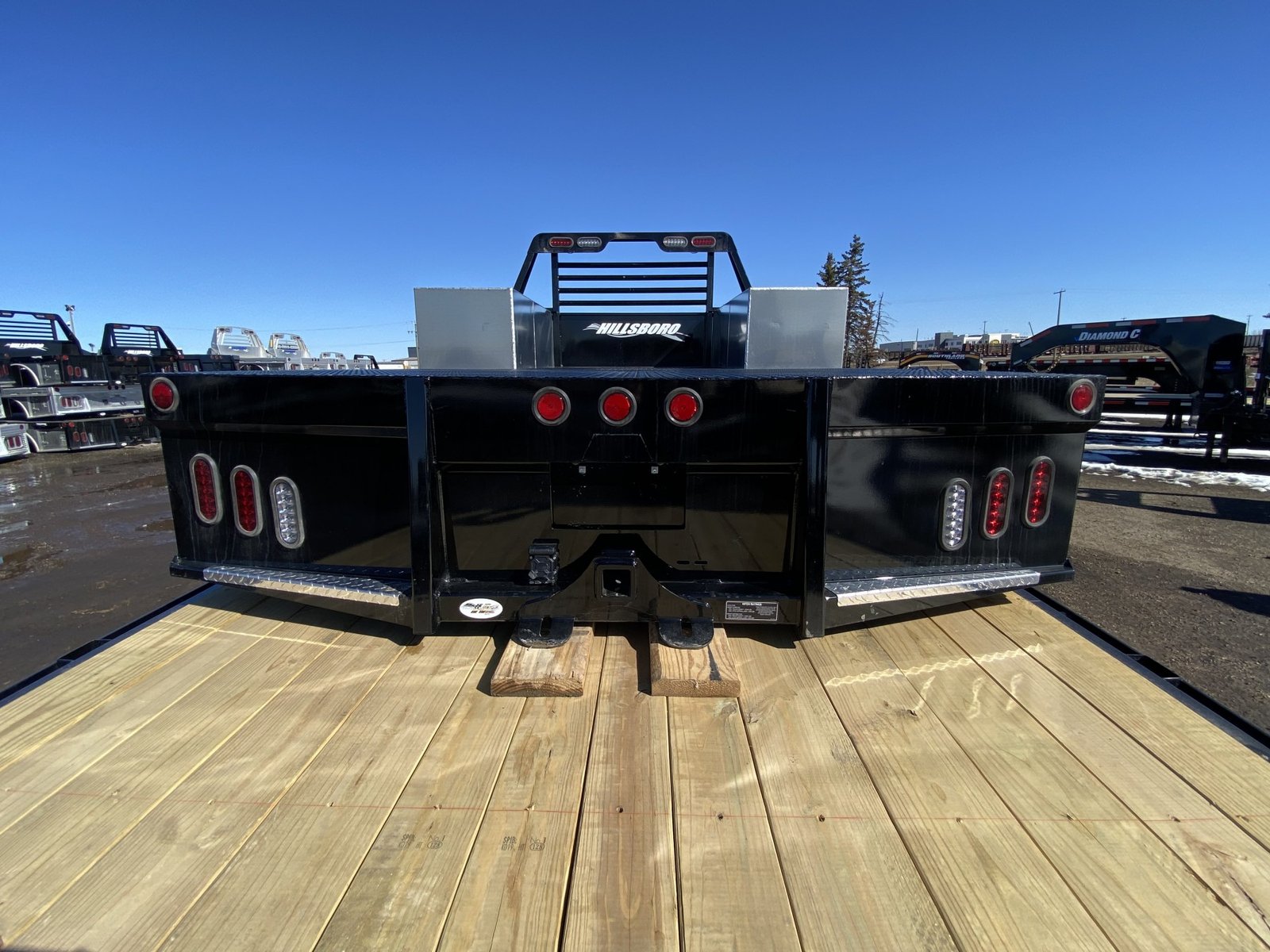

- Tapered Rear w/ Step
- Epoxy Primer w/ Black Polyurethane Paint
- LED Lights
- Dual Tag Lights
- Sealed Wiring Harness
- Filler Neck Mounting Bracket w/ Fuel Knockout
- 30K Gooseneck Ball Plate w/ Flush Mount Cover
- 25K Rated 2½” Receiver Tube
- Hitch Rating: Max Trailer Weight: 25,000lbs
- Hitch Rating: Max Vertical Load: 2500lbs
